Lorex Cirrus App - How to pair your camera to a recorder

This article explains how to pair your camera to a recorder using the Lorex Cirrus app.

Prerequisites:

• Check that your camera is compatible with the recorder. Visit lorex.com/compatibility, for more information.
• Make sure the wire-free camera battery pack is fully charged and inserted in the camera base. Refer to the product documentation, for more details.
• Make sure your recorder and camera are powered ON during the pairing process.
• Keep your wire-free camera close to the recorder during the pairing process. Do not mount the camera until the pairing is complete.

To pair your wire-free camera to the recorder:

1. Launch the Lorex Cirrus app.

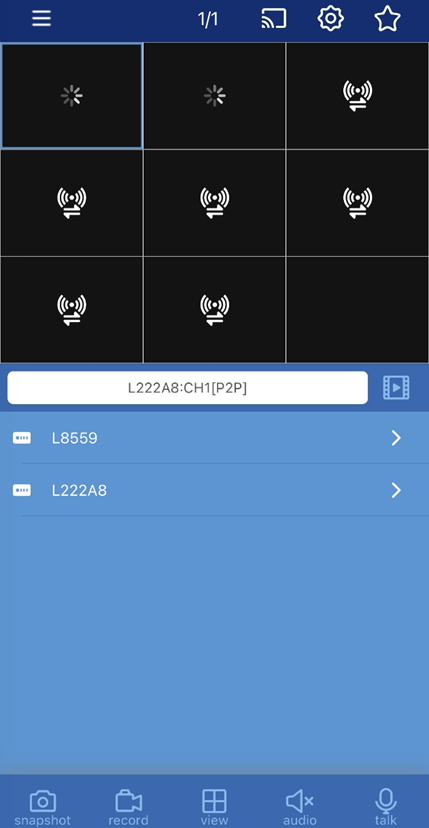

2. From the live view select a recorder from the list of devices.



3. Select any free channel then tap  to pair a camera to the channel.

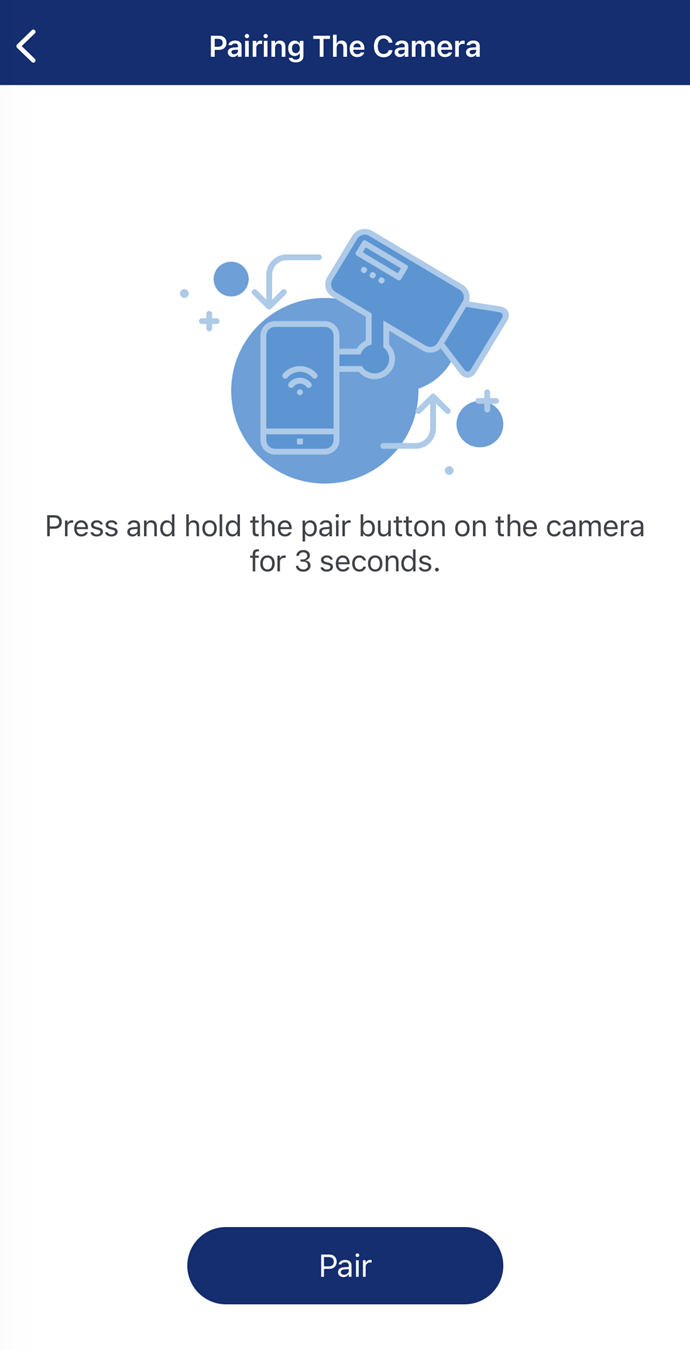

4. Press and hold the pair button on the camera for 3 seconds.

5. Tap Pair. A thirty second timer will appear.



A "Pairing success!" message will appear on screen if the pairing is successful. If you do not see this message, repeat the steps above.
