Lorex Cirrus App - Playback

Modified on Wed, Apr 16 at 2:07 PM

This guide will help you view recorded video playback from your security system using the Lorex Cirrus app.

Accessing Playback:

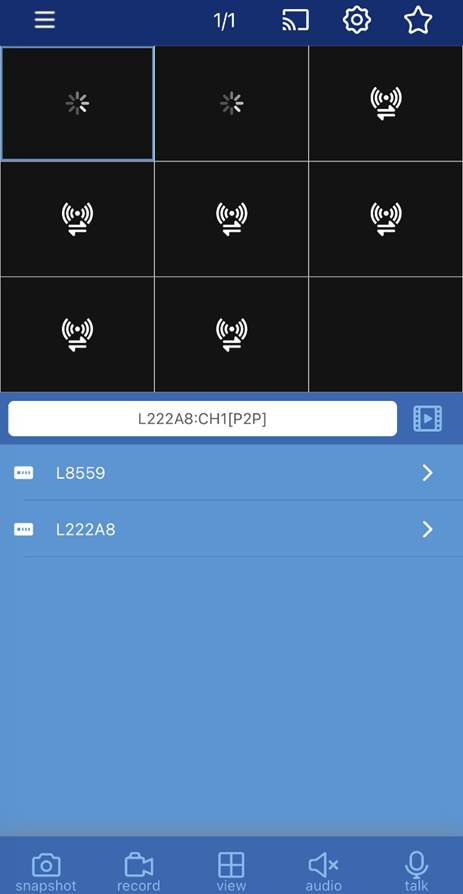

  1. From the live view, choose a channel in the display view.
  2. Tap the Playback button Playback icon to open the channel's playback screen.

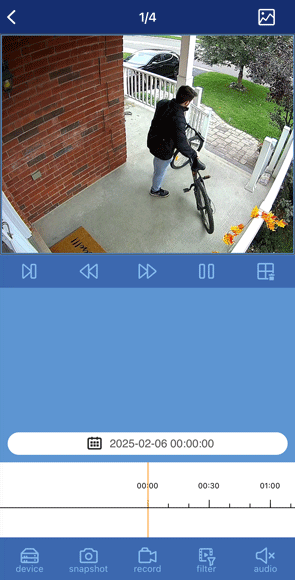

Playback Overview

  1. Display Area: Double-tap to open a single channel in full-screen. Swipe left and right to switch between channels.
  2. Frame-by-Frame: Tap to play the video one frame at a time.
  3. Slow Motion: Play the recording at a slower speed.
  4. Fast Forward: Speed up playback.
  5. Play / Pause: Tap to start or pause the video.
  6. Close All: Tap to stop all the playback recordings.

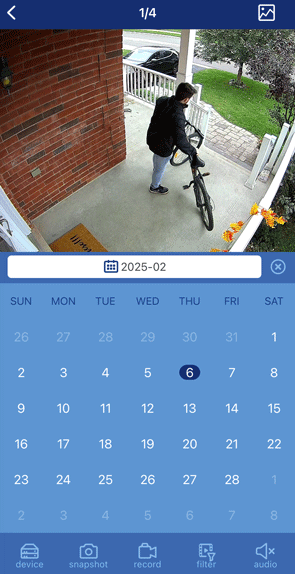

  7. Date Selection:
    • Tap the Calendar button to open the playback calendar.
    • Swipe left or right to switch between months.
    • Tap a date with a red dot to start playback from that day (Red dot under a date = Days with recorded video).
    • Tap X to close the calendar and return to playback.
      • Swipe left and right to change the month.
      • The red date indicates the current date.
      • Red dots below dates indicate days with playback recordings.
      • Tap a date with a red dot to quickly play the playback recording.
      • Tap theClose iconicon to close the calendar and return the playback screen.
  8. Timeline Controls:
    • The timeline shows the duration of recorded footage.
    • Swipe left or right to scroll through recorded events.
    • Pinch to zoom in/out for more precise navigation.
    • Highlighted sections indicate recorded events:
      • Green: Continuous or manual recording
      • Blue: Alarm-triggered recording
      • Yellow: Motion detection recording
      • Light Blue: Person detection recording

        Tip: Swipe with one finger to move through the timeline faster.
  9. Channel List: Tap to open the device's channel list and select a channel. Tap the Channel listicon again to minimize the channel list.
  10. Snapshot: Tap to take a snapshot from the selected camera. Refer to the article "Lorex Cirrus app - View saved snapshots and videos" article, for more information.
  11. Manual Record: Tap to start / stop manual recording. Refer to the article "Lorex Cirrus app - View saved snapshots and videos" article, for more information.
  12. Playback Type: Tap to open a list of playback types, then tap to select a specific playback type:
    • All
    • Continuous / Manual
    • Alarm
    • Motion
    • Person
  13.  Audio: Tap to mute / unmute audio coming from the camera (audio-enabled cameras only; must have self-powered microphone connected to the camera).

  14. Thumbnail: Tap to view a collection of playback thumbnails. Tap the thumbnails to go to a specific playback recording.
